MyDinghy 1.0 - A Box in folding, A Dingy in unfolding!

Basic dinghy and rowing dinghy


Explore Outside the Box

Fold into a box, unfold into a dinghy!

MyDinghy 1.0 BASIC - basic folding tender dingy
MyDinghy 1.0 PLUS - rowing folding dingy. All the photos below are of this MyDinghy 1.0 PLUS . Includes fittings for row locks and oars
MyDinghy 1.0 - video of assembly
MyDinghy 1.0 accessories
MyDinghy 1.0 - video of rowing and using an outboard motor

Prices
- refer to Dinghies - New
MyCanoe - see MyCanoe page

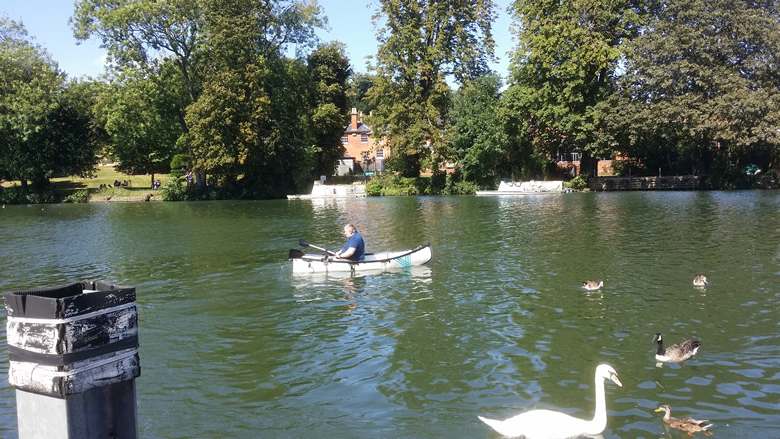

Photos of the MyDinghy at UK try outs




MyDinghy 1.0 BASIC follows on from the development of the MyCanoe canoe- "the world’s first origami canoe"
This 9-foot long dinghy can be folded into a 94cm x 64cm smart suitcase like box, portable and small enough to be stashed into a car boot, taken on coaches, trains and planes. This small tender type boat can make larger boats moored off-shore more easily accessible as there is no need to worry about storage of a hard shell dinghy on-shore.

The MyDinghy has an adjustable rocker - either have no rocker or some rocker (curved keel). Difference is between 5-6cm at the bow. The degree of rocker is achieved through the tightening of the webbing straps (4 each side) along the top of the gunwales.

MyDinghy 1.0 is made of a ultra tough polypropylene corrugated plastic cardboard with hinges along the folds, which are durable to withstand up to 20,000 times of folding and unfolding. The whole hull comprises of a single piece of cardboard with two separate thicker reinforcement floorboard pieces which is also the outer covers of the suitcase box when folded.

Folding up (make box) in 5 minutes, unfolding (make canoe) in 10 minutes, the canoe is easy and safe for everyone. Built for longevity.

Features

- Small tender type boat for accessing larger boats anchored off-shore, crossing rivers, and for fishing in the rivers and the lakes.
- Lighter and least inconvenient than inflatable's
- 9 feet long in use, compact box 94cm x 64cm folded
- Easy to assemble and disassemble
- Available for everyone to paddle or row
- Easily attach fittings and accessories for fishing
- Small electric or petrol outboard motor can be attached to the transom
- Fits into most small cars

Specifications
Boat Type : Tender and rowing dinghy
Material : (5mm) Polypropylene Corrugated Cardboard Plastic
Folding time (packing away): 10minutes
Unfolding time (assemble): 5 minutes
Connection / fastening materials : velcro, straps/buckles
Components : ABS, Stainless Steel bolt, Aluminu
m cross ribs

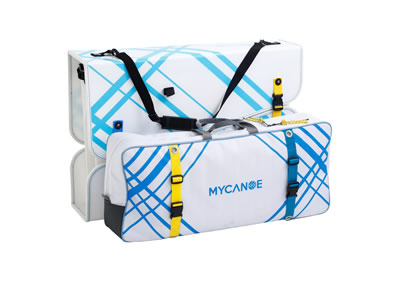

MyDinghy box and bag
Box includes a shoulder strap. Carry bag has some free space for extra items such as PFD's (not included)





MyDinghy 1.0 PLUS rowing dinghy


Loading Capacity
Maximum 396lbs / 180kg (2 adults with stabilisers fitted)
Suggested 286lbs / 130kg - (1 adult)


There is a separate carry bag for the loose items that are not integrated with the one-piece corrugated hull. EG aluminum cross ribs, seats, and gunwale edging pieces (caps)


Stats (MyDinghy PLUS)
Assembled
dinghy
Folded
box
Packed bag
Length
285cm
94cm
88cm
Width
94cm
20cm
18cm
Height
54cm
63cm
40cm
Weight
24kg
12.9kg
10.9kg
Packed bag includes cross ribs, seat,
gunwale caps, oar locks & oars

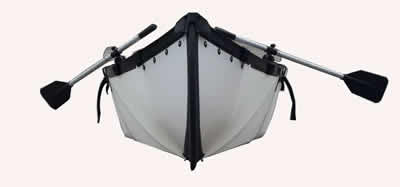

MyDinghy 1.0 PLUS
The PLUS version is the same dinghy but with row lock attachment fittings, so that you can attach the included removable row locks as needed. Two part split oars are also included with this PLUS version - the packed oars fits neatly in the dinghy carry bag.
The single seat can be positioned to be used with the forward or backward rowing technique.

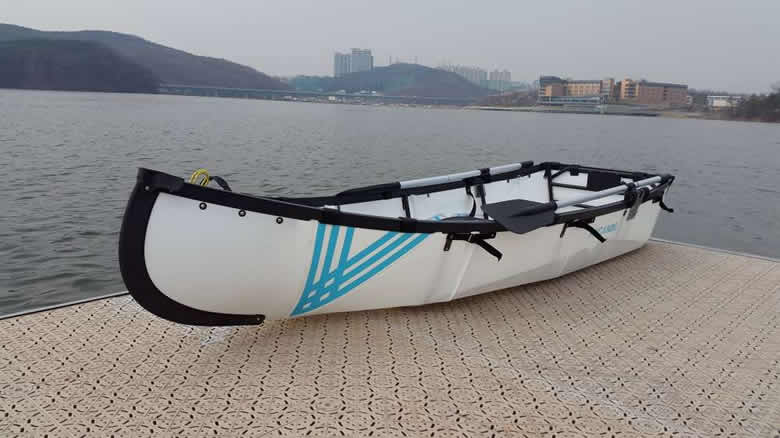

MyDinghy 1.0 PLUS

Mydingy folding origami boat

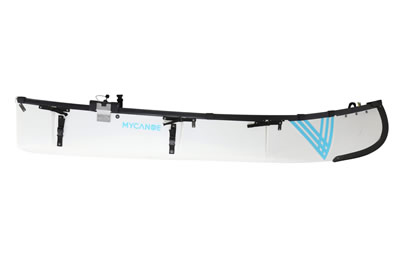

MyDinghy 1.0 PLUS

MyDingy folding origami boat

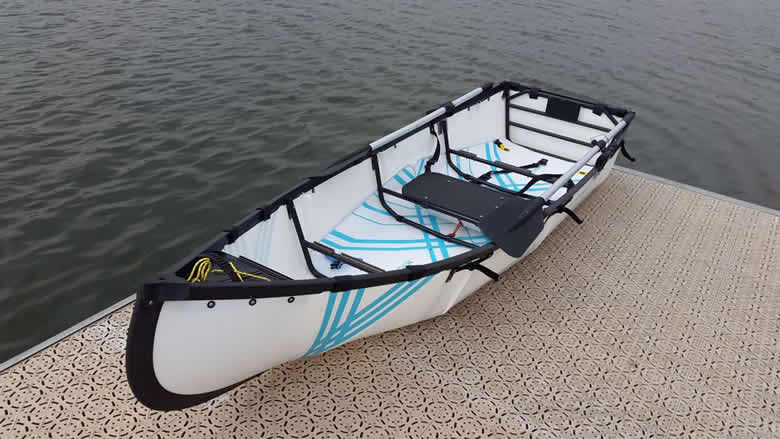

MyDinghy 1.0 PLUS



MyDinghy assembly

How to assemble MyDinghy from MYCANOE on Vimeo.





MyDinghy 1.0 optional extras / accessories

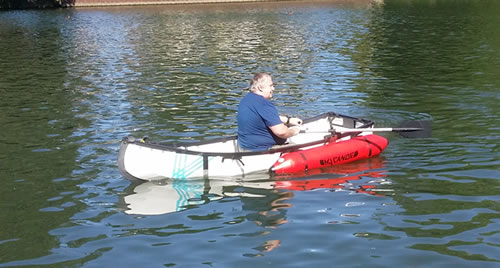

Stabilisers - MyDinghy comes ready with fittings to accept MyCanoe Stabilisers. Included in the MyCanoe Stabilisers Pack is a carry bag, a pump and a pair of inflatable pontoons.

Use MyCanoe inflatable stabilisers to increase the safe loading limit of the MyDingy, and to provide a stable platform - EG stand up for fishing or photography. Attachment is via strap buckles.

The MyCanoe Stabilisers are also compatible to use with MyCanoe open canoe.

MyDingy folding origami boat





Using MyDinghy - ease of rowing and using an outboard motor

Mydinghy rowing and using an outboard motor from MYCANOE on Vimeo.
